AIMMS Cloud Database and VPN Configuration
This article will frequently refer to the different set ups for exchanging data with the AIMMS cloud platform as described in the article Exchange data with the AIMMS Cloud Platform. Please get familiar with this article or have it open for additional context.
This section describes how to manage and administer the application database and connectivity (through VPN or otherwise) to it.
We would like to offer a secure environment to give you access to your application database. In the past we offered DB IP Range filtering on your database, but the database was open to the public via the internet. This is no longer done.
Now the database is only accessible from within an AIMMS session.
If you however need direct access to the application database, we offer two possibilities:
Database Tunnel Application
Recommended if you need occasional access to the database (e.g. to inspect some tables, alter the schema, add users, etc.). See Database Tunnel Application section in this document for more details.
VPN (Virtual Private Network) connection
Recommended if you need more permanent access, e.g. when you regularly synchronize between an on-premise resource and the application database
The picture below shows the conceptual network topology:
When a VPN connection has been set up, sessions cannot reach anything on premise, because the sessions are configured to only have a route available to their appropriate Customer Single Tenant Private /26 network.
Similarly, the Tunnel Service and the database tunnel application only allows access to the database of the appropriate customer. Access to that tunnel service is arranged via PRO user/group management.
Initial Database Setup
After you receive administrator login credentials for the AIMMS PRO Portal, go to Database Configuration and click the Create link to begin setup for the application database.
Next it will show the following dialog:
Fill in the username and password for the database administrator who will be accessing the database. Note that password needs to be longer then 8 characters and can be any printable ASCII character except spaces,”/”, “””, or “@”.
Next to that, you can assign an IP address range for the private network that will be created to host the database on the AIMMS Cloud side. You can also choose to automatically assign this range.
The choice of this IP address range becomes important if you choose to set up a VPN connection to this database. It will always be possible to migrate that database to a different IP range, but that will cost some downtime of the database, and thus some downtime for your applications. See Migrating the Database and Adding a VPN Connection sections in this document for more details.
Click Create Database and you will be navigated back to the main page. A network will be created to host the database under Networks, as shown below:
Typically it will take about 20 minutes for the database to be created. When it is done, the status is ‘Ready To Use’ and the Endpoint field is set.
You can reach the database from within an AIMMS session using the Endpoint host name.
Further, the network type has changed to Production
Specifications and Requirements for a VPN Connection
Before setting up the VPN, be sure you have the following information available. Typically this requires the involvement of your IT department:
The AIMMS Cloud db network CIDR (Classless Inter-Domain Routing) range
This can be any /26 network range in the any of the private network ranges: 10.0.0.0/8, 172.16.0.0/12 and 192.168.0.0/16, but excluding the 10.32.0.0/12 and 172.17.0.0/16 ranges (which we use for our own services). Furthermore, it cannot have any overlap with any of our other customers’ PRO Cloud ranges. This range is specified as the address range of the network. When you submit this range to create a network, we will verify those range conditions.
The Customer network CIDR range
This can be any network range in any of the private network ranges: 10.0.0.0/8, 172.16.0.0/12 and 192.168.0.0/16, but excluding the 10.32.0.0/12 and 172.17.0.0/16 ranges (which we use for our own services). This range needs to be specified when creating the VPN (see below).
The Customer public IP address
This is the public IP address to reach your VPN appliance. This IP address needs to be specified when creating the VPN (see below).
After setting up the VPN connection in the AIMMS Cloud, you can download a guide to setting up the VPN on your side. This includes two pre-shared-keys (PSKs) to set up the two VPN tunnels. We recommend you to set up two tunnels to ensure availability of your connection. We may do unannounced maintenance on the VPN tunnels, but never on those two tunnels at the same time.
Adding a VPN Connection
You can add new VPN connections to a network by navigating to the View VPN Connections on the main database configuration screen for the appropriate network. If the network requires a different CIDR, first create a new network with the appropriate settings.
Here you will see more details of the network. After creating the VPN and setting it up locally, you should be able to ping this host with the
Pinghost IP address.

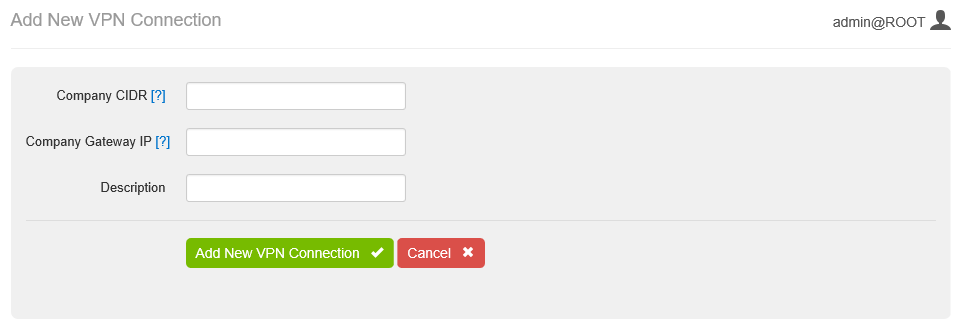

Click Add New VPN Connection and the following dialog appears:
The Company CIDR is the IP range on your private network side, and the Company Gateway IP is the public IP address. Optionally you can add a description to identify this VPN connection, e.g. ‘Seattle office’. After creating the new VPN you will be redirected to the VPN Connections/Network details page. Typically this will take about 4-5 minutes.
When the VPN connection has been created successfully, you can download a configuration file.
We have several device specialized configurations available. If your device is not on the list, you can choose the Generic configuration file, or contact our customer support for help configuring your specific device.
Setting up a New Network
You want to set up a new network for one of two reasons:
The IP address range of the current network needs to change because of changed on-premise network conditions.
You want to migrate from the prior publicly available database to a database on the private network (potentially using a VPN to access it).
In both situations you end up with a network with Type Test. You can migrate your database to this network, after which Type automatically becomes Production and the potential prior network (and its VPN connections) will be deleted. Prior to that you might want to add VPN connections to this network and test whether you have set up the VPN correctly by pinging the
Pinghost. See also Adding a VPN Connection.
To set up a new network, click Add New Network on the main database configuration page.
Here you will have the option to either auto assign the network CIDR range or specify it yourself. As mentioned in Specifications and Requirements for a VPN connection this range can be any /26 network range in the any of the private network ranges: 10.0.0.0/8, 172.16.0.0/12 and 192.168.0.0/16, but excluding the 10.32.0.0/12 and 172.17.0.0/16 ranges (which we use for our own services). Furthermore, it cannot have any overlap with any of our other customers PRO Cloud ranges. This range is specified as the address range of the network. When you submit this range to create a network, we will verify those range conditions.
Creating a new network will take about 3 minutes:
Migrating the Database
Migrating the database will result in a change of the database IP address. Please make sure that all your AIMMS applications and potentially other applications accessing your cloud database use the FQDN specified at the endpoint field before migrating. The migrate mechanism will update the DNS entry to reflect the new IP address.
Before migrating your database, you first need to set up the destination network. See Setting up a New Network above. Networks with Type Test have the action Migrate Database Here available. When you click that link you are directed to the Database Migration page.
Here you need to enter the date and time to schedule the migration. The migration results in approximately 45 minutes of downtime for access to your database. During this time your AIMMS applications will not be able to access the database and thus are likely to not be functional. The time is specified in your local time zone, according to the browser used to access the AIMMS Cloud Portal. After submitting the date and time for migration you will be directed to the main Database Configuration page. Under Migration Status you will see date and time scheduled:
When looking at the Database Configuration page during the scheduled migration time, it will display both networks being in a ‘Migration In Progress’ state:
When the migration is finished it will display the migration status as ‘Completed’ and the previous production network will have been removed:
Database Tunnel Application
We can provide the simple AIMMS Desktop Application which allows you to open up/close the local connection to the AIMMS Cloud App database. All you need to do is publish this application with AIMMS Version 4.66.2 or higher on your PRO Portal and configure the Tunnel from the Configuration menu. See also Tunneling Support for more details on Tunnels.
For example, if your app database is called
example.db.cloud.aimms.com then your Tunnel configuration and DB Tunnel App would be as shown,
Where ‘TunnelName’ is URI Context Path and ‘Local Port’ can be any port between 1 to 65536.
You can Start/Stop Tunnel using Start and Stop buttons. Once you have provided ‘TunnelName’ and ‘Local Port’, you do not need to click Start or Stop each time. You can check ‘Automatically connect at startup’ parameter, then tunnel can be started automatically upon launching the application.
When you close the application tunnel will be also closed. You can download DB Tunnel App from here.
We have further enhanced DB Tunnel App such that it can report errors when it can not start the tunnel. Example scenarios/error messages are,
When the local port is already in use on the same machine by any other application. –
pro::tunnel::TunnelStart : while binding to tcp://localhost:3306
When AIMMS PRO User does not have access to the Tunnel. –
pro::tunnel::TunnelStart : Access denied
When TunnelName is not found. –
pro::tunnel::TunnelStart : Tunnel not found
Connecting to Cloud DB using MySQL Workbench
Once the tunnel is started, you can connect to the AIMMS Cloud App database locally via MySQL database administrative tool i.e. MySQL Workbench. Your connection parameters should be as shown,
Please make sure that ‘Hostname’ is localhost and ‘Port’ is same as Local Port specified in Tunnel App (i.e. in this example it is 2201).
To use tunnels in your AIMMS model, please check model changes for tunneling
